LED Strip Light

Home » Products » LED Outdoor » LED Strip Light

  • SMD3528 5050 2835_LED Strip Light

  • Description:

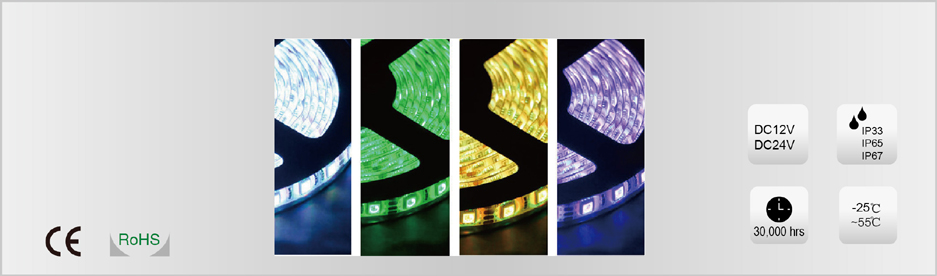

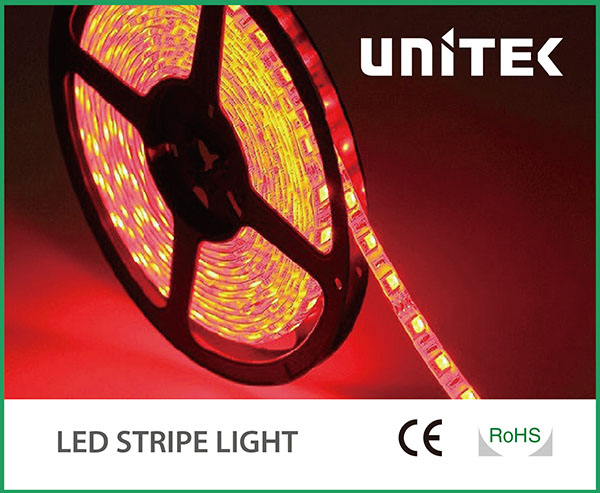

                • SMD3528 5050 2835 Flex LED Strip Light

                  RGB can be available. Warranty 2 years.

  • send inquiry



Advantages
  ● Soft structure can be cut freely arbitrarily extended to emit light is not affected.
  ● The FPC soft material that can be bent, folded, winding, three-dimensional space can freely move and stretch without breaking.
  ● Suitable for irregular place and space using a small place, but also because you can arbitrarily curved and winding, suitable for any combination of a variety of patterns in advertising decoration.

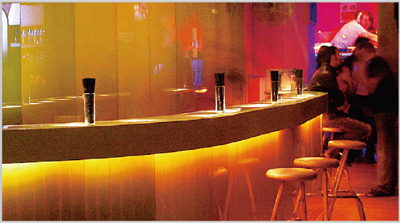

Applications



Model UN-SMD3528-4T5 UN-SMD3528-5T6 UN-SMD3528-6T7 UN-SMD3528-RGB UN-SMD5050-10T12
Wattes(W) 4.8/ 9.6/ 2.4/ 4.8/ 7.2/ 7.44/ 9.6/ 19.2
Input Voltage DC 12V/ 24V
Color Temp. 3000K/ 4000K/ 6000K RGB 3000K/ 4000K/ 6000K
LED Q'ty/m 30/ 60/ 90/ 96/ 120/ 240
Lumen(lm)/m 250/ 480/ 130/ 250/ 380/ 390/ 450/ 900 300/ 580/ 160/ 300/ 480/ 485/ 550/ 1050 350/ 680/ 180/ 350/ 520/ 530/ 650/ 1200 - 300/ 600
LED Type SMD3528 SMD5050
Package 5m/reel, 8m/reel, 14m/reel 10m/reel,18m/reel
Warranty 2 years



Model UN-SMD5050-12T15 UN-SMD5050-18T22 UN-SMD5050-21T24 UN-SMD5050-SRGB UN-SMD5050-RGB
Wattes(W) 4.8/ 9.6/ 2.4/ 4.8/ 7.2/ 7.44/ 9.6/ 19.2
Input Voltage DC 12V/ 24V
Color Temp. 3000K/ 4000K/ 6000K Single Color RGB
LED Q'ty/m 30/ 60/ 90/ 96/ 120/ 240
Lumen(lm)/m 370/ 580/ 730/ 1460 540/ 860/ 1100/ 2160 600/ 970/ 1200/ 2400 - -
LED Type SMD5050
Package 10m/reel,18m/reel
Warranty 2 years



Model UN-SMD2835-10T12 UN-SMD2835-20T22
Wattes(W) 3.6/ 7.2 7.2/ 14.4
Input Voltage DC 12V/ 24V
Color Temp. WW/ NW/ DL
LED Q'ty/m 30/ 60
Lumen(lm)/m 300/ 600 600/ 1000
LED Type SMD2835
Package 8m/reel
Warranty 2 years
  • ♦ Space-saving

       FPCB, SMT technology, total thickness is as same as a "coin".



    ♦ Length Freely Control

       Length can be shortened or lengthened as required without affecting light-emitting.



    ♦ Flexibility

       Can be bent, folded, winded, and moved freely in three-dimention space and stretched without broken.





















Epoxy Silicone, Silicone Casing, Silicone Glue can be available as IP level requirements.
