LED Street Light

Home » Products » LED Outdoor » LED Street Light

  • LED Street Light

  • Description:
                • Bamboo Leaf Fashion Design, Die-casting Alluminum, Good Heat Dissipation.

                  Adjustable pole adapter for easy assembly

                  Available in different color from 30W-174W

                  IP65

                  Wide Voltage 100~277V

                   Optional Solar Solution

  • send inquiry



Advantages
  ● The UNB series LED Street Light with the simple,fashioned design and 4 different color optional for the light body.
  ● The light use Die-Casting Aluminum and surface adapts the wether-resistance and anticrorrosive treatment.
  ● The light use one button to open and easy for maintenance.
  ● The Light style like Chinese Bamboo Leaf,More green, environmentally energy saving ideas, more User- friendly.

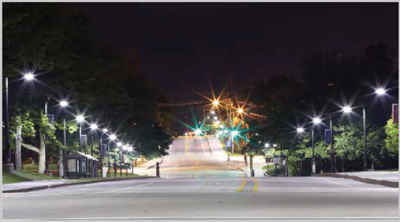

Applications

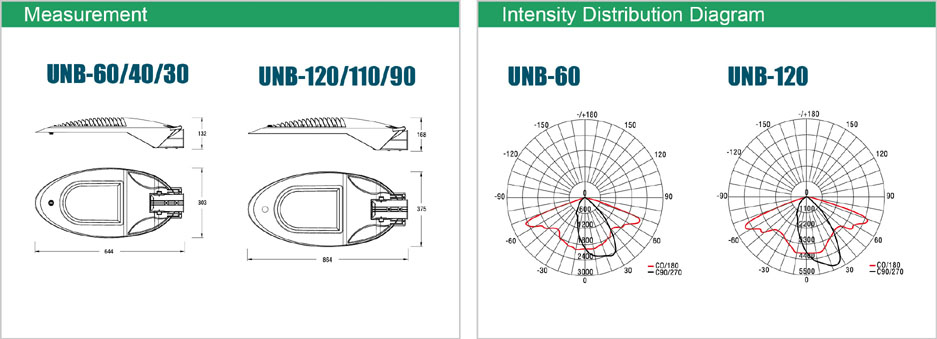

Model UNB-30/40 UNB-40/61 UNB-60/88
Rated Power(W)@350mA 30 40 60
Light output(lm_DL)@350mA 2698 3664 6102
Rated Power(W)@500mA 40 61 88
Light output(lm_DL)@500mA 3291 4836 7444
Max Light efficiency 91lm/w 92lm/w 91lm/w

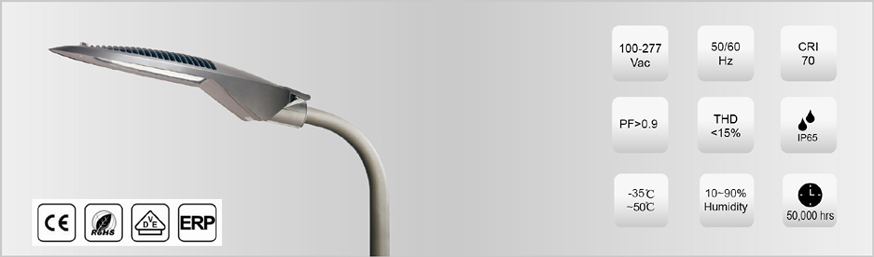

Input Voltage 100-277V AC / 50-60Hz
For Solar Solution  @350mA: 12V DC/ 24V DC  @500mA: No
LED Quantity/ pcs 24 32 54
CCT 6500K/ 4000K/ 3000K
CRI under 6500K 70
PF >0.9
THD <15%
Ambient Temp. -35℃-50℃
Ambient Humidity 10% to 90%
IP Grade 65
Lifespan >50,000hrs

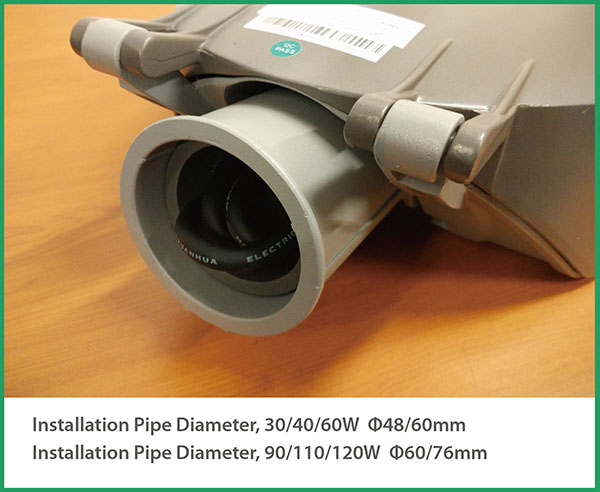

Installation Pipe Dia.(mm) φ48/ φ60
Installation Height 4-6m 5-7m 6-8m
Qty./Ctn. 1
 Carton Size(cm) L76*W36*H18
 Gross Weight(KGs)/ pc 7
Warranty 3 years



Model UNB-90 UNB-110 UNB-120
Rated Power(W)@350mA 90 110 120
Light output(lm_DL)@350mA 8962 10825 12378
Rated Power(W)@500mA 142 150 174
Light output(lm_DL)@500mA 11829 13207 15100
Max Light efficiency 93lm/w 96lm/w 98lm/w
Input Voltage 100-277V AC / 50-60Hz
For Solar Solution  @350mA: 12V DC/ 24V DC  @500mA: No
LED Quantity/ pcs 80 96 112
CCT 6500K/ 4000K/ 3000K
CRI under 6500K 70
PF >0.9
THD <15%
Ambient Temp. -35℃-50℃
Ambient Humidity 10% to 90%
IP Grade 65
Lifespan >50,000hrs
Installation Pipe Dia.(mm) φ60/ φ76
Installation Height 8-10m 9-11m 10-12m
Qty./Ctn. 1
 Carton Size(cm) L92*W45*H24
 Gross Weight(KGs)/ pc 13
Warranty 3 years



Model UNB-S20 UNB-S30 UNB-S40
Rated Power(W) 22 30 44
Light output(lm_DL) 1933 2547 3669
Light (lm/ w) Max. 83/ 76/ 63 Max. 84/ 78/ 64 Max. 87/ 80/ 66
Input Voltage 100-277V AC / 50-60Hz
For Solar Solution  @350mA: 12V DC/ 24V DC  @500mA: No
LED Quantity/ pcs 9 12 18
CCT 6500K/ 4000K/ 3000K
CRI under 6500K 70
PF >0.9
THD <15%
Ambient Temp. -35℃-50℃
Ambient Humidity 10% to 90%
IP Grade 65
Lifespan >50,000hrs
Installation Pipe Dia.(mm) φ48
Qty./Ctn. 1
 Carton Size(cm) L55*W30*H18
 Gross Weight(KGs)/ pc 3.5 4 4
Warranty 3 years

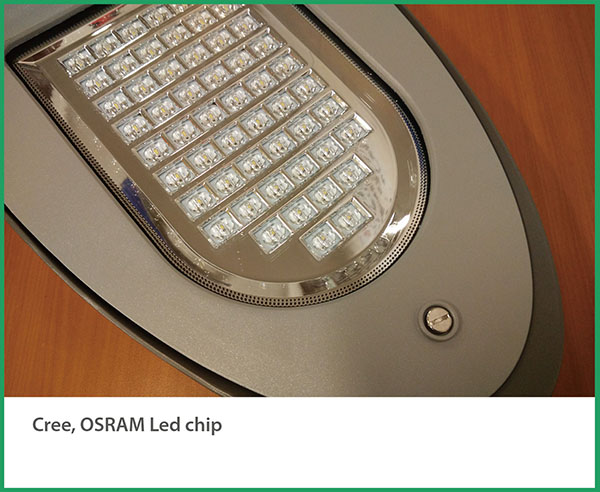

  • UNITEK STREET LIGHTS are using the newest AC LED technology,  which make less heat from the light source  and which gives more efficient and  long-lasting components,   The Light source unit is thermally coupled to the aluminum housing of the module and the module itself is screwed to the luminaire housing. This creates a large contact area, over which the remaining heat of the LEDs can be dissipated in a highly efficient manner.


    ♦ High Quality Aluminium with a Long lasting Coating

       The shape of the cover is adjusted to an angle with heat releasing ribs to easy get rid of snow, ice and dust



    ♦ Intelligent Light Control Systems

       A solar system also can be implemented in the newest street lightning system.



    ♦New Lenes Technology

       The precisely calculated lenses break up the beams of the high power LEDs into an unison effect of the light to avoid the  glare for drivers, pedestrians and residents.



    ♦ Unique Appearance & Heat Dissipation

       Bamboo leaf design, die-casting alluminum can be effective to attain heat sink and adapt the weather-resistance.

       "V" style finned heat sink to prevent the dust and others from stacking on the back.

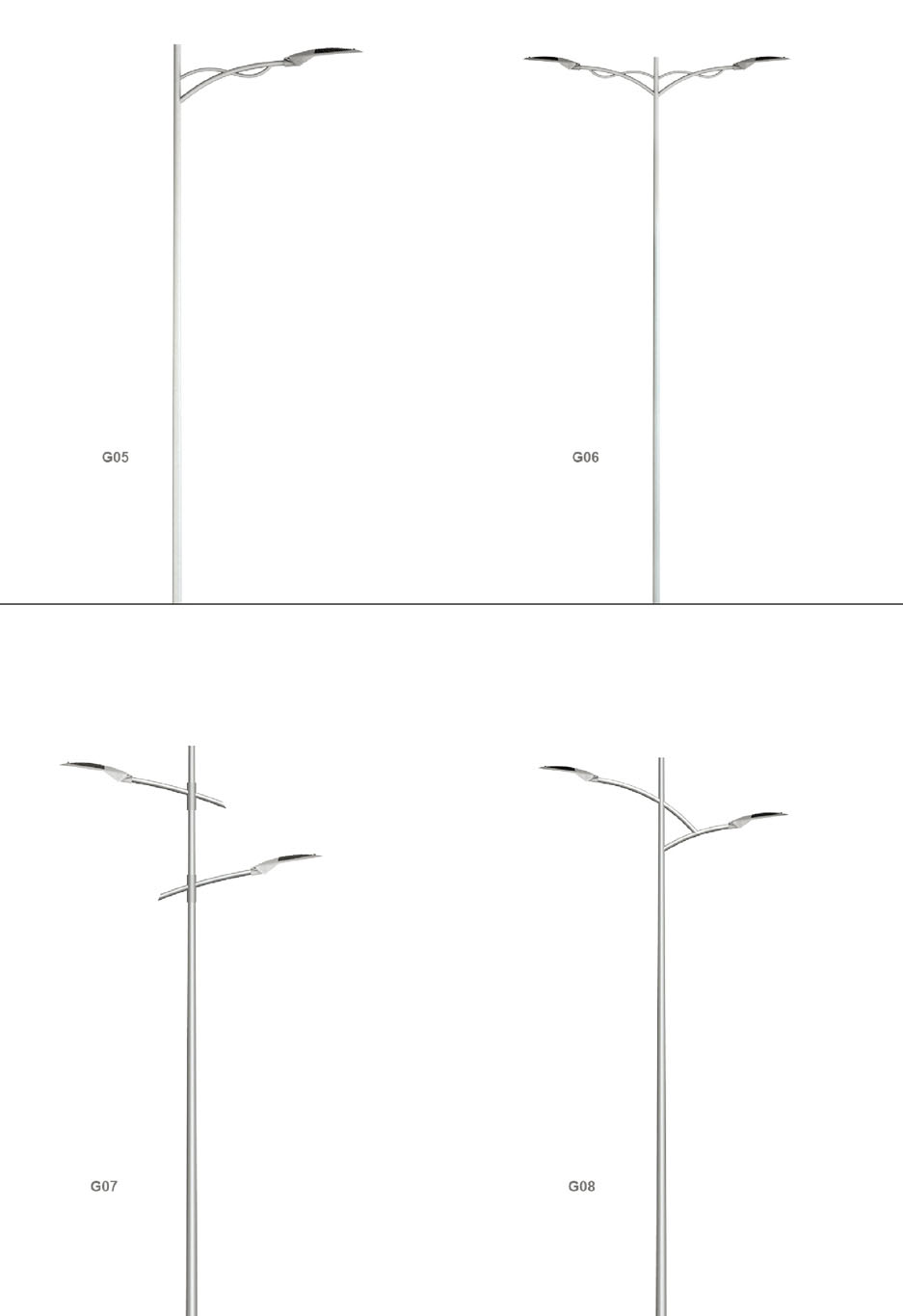

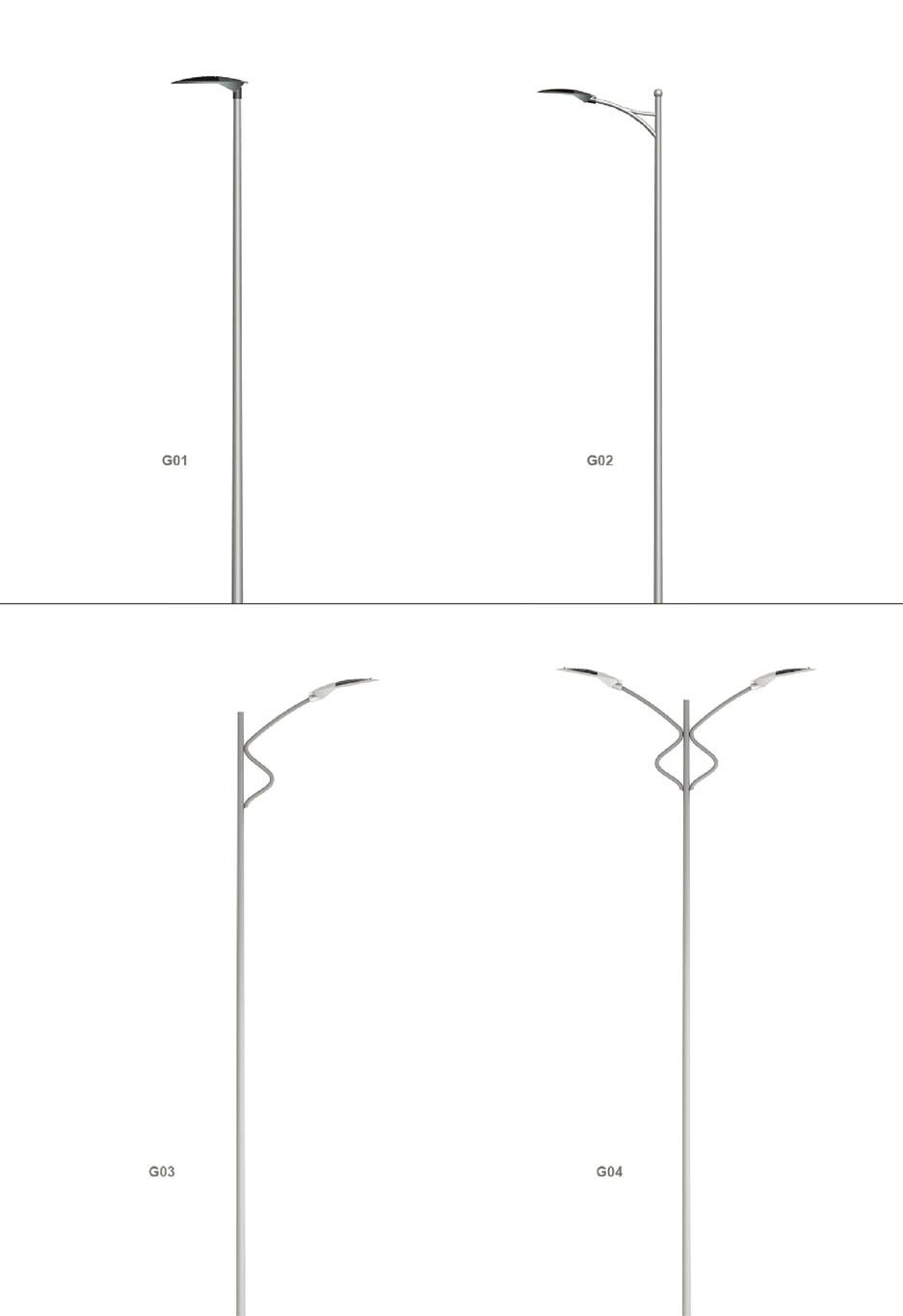

    ♦ Flexible Structure

       Vertical/ Horizontal installation: adjustable angle is 0°-10°/ -5°-+5°.







    ♦ Easy Maintenance and User-friendly

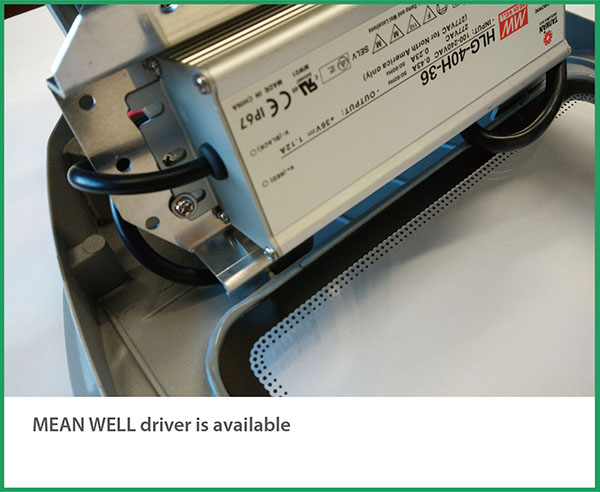

       Only one screw to open the lamps; Connection by pulling plug for easy installation and mainetance; Site open by special support frame design.







    ♦ Environment-friendly

       Energy-saving idea



    ♦ 4 Different Color is Optional

  •
