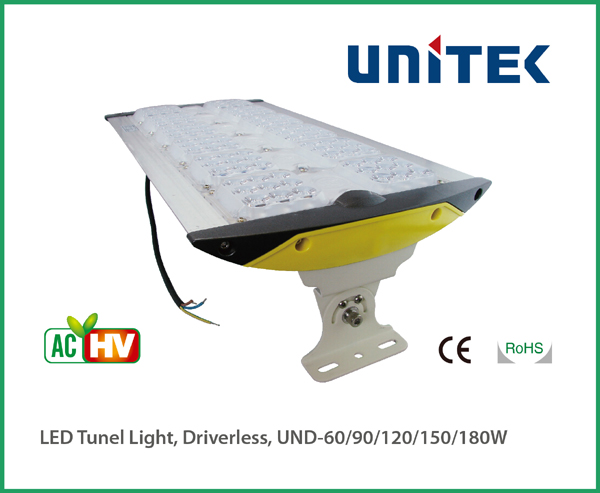

• ACHV New Design CE_LED Tunnel Light

  • Description:
                  • ACHV New Technology Design

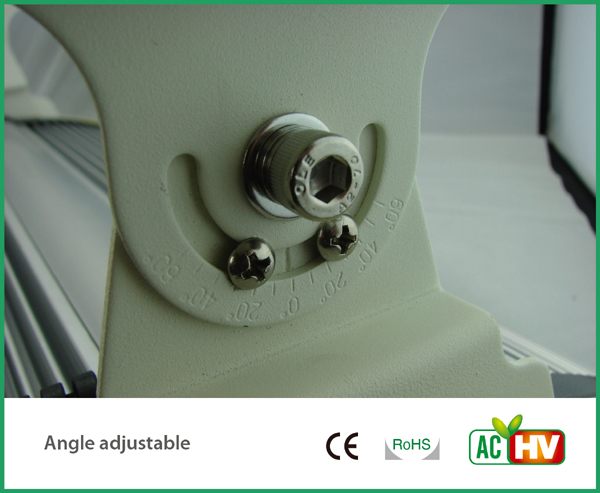

                    Wide Voltage and Constant Current Control, Adjustable beam angle.

                    IP65, Long Lifetime>50,000hrs.

  • send inquiry



Advantages
  ● New AC technology, no need extra driver, no electronic interface.
  ● Few IC components, fixture is slim and light, more stable.
  ● Exquisite structure, easy installation.
  ● Ecellent heat-dissipation structure.
  ● Longer lifetime.

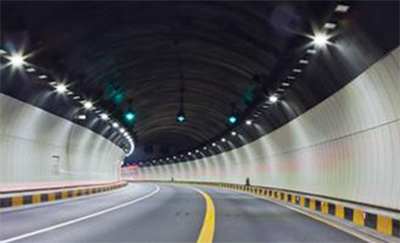

Applications



Model UND-60 UND-90 UND-120 UND-150 UNB-180
Rated Power(W) 60 90 120 150 180
Light output(lm_DL) 5400 8100 10800 13500 16200
Max Light efficiency 90lm/w
Input Voltage 198-242V AC / 50-60Hz
Beam Angle Beam Adjustable
CCT 5700K
CRI under 6500K 70
PF >0.98
Ambient Temp. -25℃-45℃
IP Grade 65
Classification Class I
Lifespan >50,000hrs
Qty./Ctn. 1
Warranty 3 years



  • ♦ Independent patent of integrated SMD drive engineering technology



    ♦ Independent patent of AC driving solution



    ♦ Less electronic components to lower ROCOF



    ♦ Through the enfine module, it is convenient to update products



    ♦ 10KV lighting protection modules is available



    ♦ Controllable and dimmable module



    ♦ Various light distribution forms



    ♦ IP 65



    ♦ Wide Voltage & Constant Current Control
